Routemaster Dimensioned Drawing
Routemaster Drawing

Approx. actual print quality:
Routemaster Drawing callout

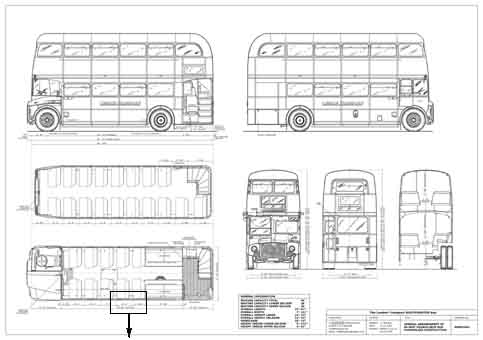

A dimensioned drawing of the Routemaster bus showing nearside, offside, front and rear views, plus plans of upper and lower decks and a cross-section of the saloons. The major external and internal measurements are given, and there is a table of General Information.
This is a new drawing, using data from a London Transport original, and represents the vehicle in its 1964 condition. It is ideal for model-building, for planning interior changes, exterior painting or advertising layout, and is a valuable addition to any collection of Routemaster memorabilia. Only available from us.
The drawing is A1 size: 840mm width x 594mm height.
Price: £15.00 each. Please specify on your Order Form whether you want us to post the diagram folded or rolled.


To order this or any other item on this page, please print and complete the
Order Form, or send an email to TheRMmanual[at]yahoo.com

Perspective Drawings
AEC Routemaster Mechanical Layout
Enhanced Routemaster Mechanical Layout Drawing
An isometric drawing of the underframe of the famous London Transport Routemaster bus, taken from original material and coloured to show in great detail all the mechanical units - engine, gearbox, suspension, axles, brake system, etc. A fascinating view of a unique vehicle. The drawing is printed in full colour on high-gloss A4 paper, ready for framing. A collector's item.
Price £6.00.
To order this or any other item on this page, please print and complete the
Order Form, or send an email to TheRMmanual[at]yahoo.com

AEC Routemaster Body Structure
Enhanced Routemaster Body Structure Drawing
An isometric cutaway drawing of the bodywork of the famous London Transport Routemaster bus, taken from original material and coloured to show in great detail the underframe, structure, floors, panelling, etc. A fascinating view of a unique vehicle. The drawing is printed in full colour on high-gloss A4 paper, ready for framing. A collector's item.
Price £6.00.
To order this or any other item on this page, please print and complete the
Order Form, or send an email to TheRMmanual[at]yahoo.com
